Rendering

Attenuation, Textures and Third Party Code

Kevin Watkins

• 4 min read

To make the scenes a bit more interesting the next step is to add some more realistic lighting and some textures.

Attenuation

When modelling Lambertian Reflectance I made the lights have constant intensity, i.e. the intensity at the point on the surface \( I \) was always 1. In reality the intensity of a light diminishes with distance from the source. To model this all the lights now take an Attenuation instance which is used to determine the intensity at a distance from the light. Rather than have separate sub classes for each type of attenuation I've made the Attenuation type take a function that gives the intensity; there are then static methods to create the various different attenuations. This seemed a simpler approach given the attenuation is just a single, simple function.

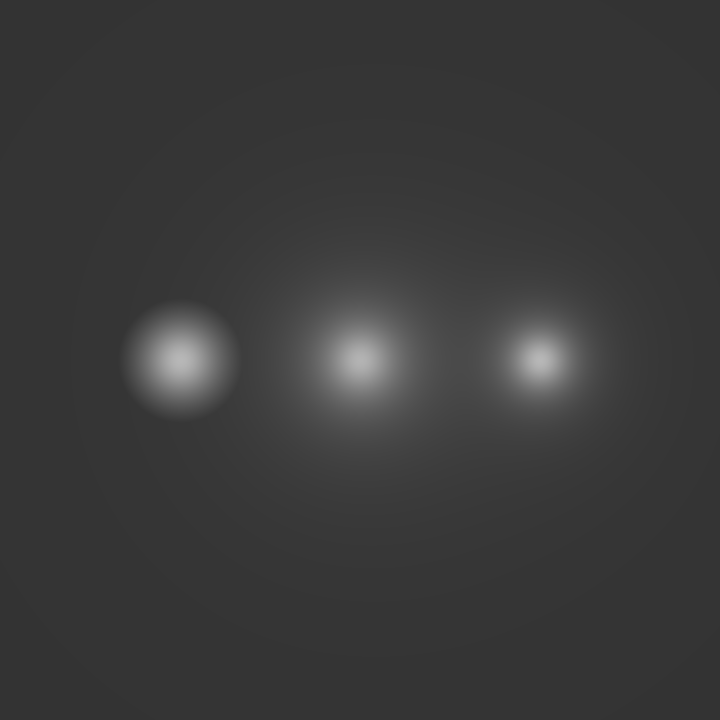

We'd expect the intensity to fall off as an inverse square law. As well as creating an inverse square attenuation I've also added linear and inverse. We can demonstrate their difference by rendering three spot lights just above a plane; from left to right, linear, inverse and inverse square:

Attenuations

Textures

Currently we determine the colour of our surface at a given point by just taking a single colour. I've now made this a bit more general with a Material class. This is basically a function that gives the colour at a given point. Currently the materials are simple and don't know anything about the geometry of the object they're for - I can see this might change in the future, e.g. mapping a texture to a sphere will involve needing knowledge of the size of the sphere. There are currently three materials:

  • Solid. Just a single colour, as before essentially.
  • Chequerboard. A repeating chequerboard of two colours. Determining the colour at a given point is simply a matter of dividing each of the \( x \), \( y \) and \( z \) (our chequerboard is really 3D, with cubes rather than squares...) co-ordinates by the size of the squares (cubes!) to get the number of the square in each direction. We then add these three numbers - if the total is even we return one colour, if it's odd we return another.
  • SkyGradient. I've also made the background for the scene a material. Now we project the ray long into the distance if there are no intersections and use that co-ordinate with a material to work out the background colour. SkyGradient is designed to be used for the background. It's two colours, one at the horizon and one at the zenith. To work out the colour at a given point we just work out the angle from the horizon and interpolate between the two colours based on the size of the angle.

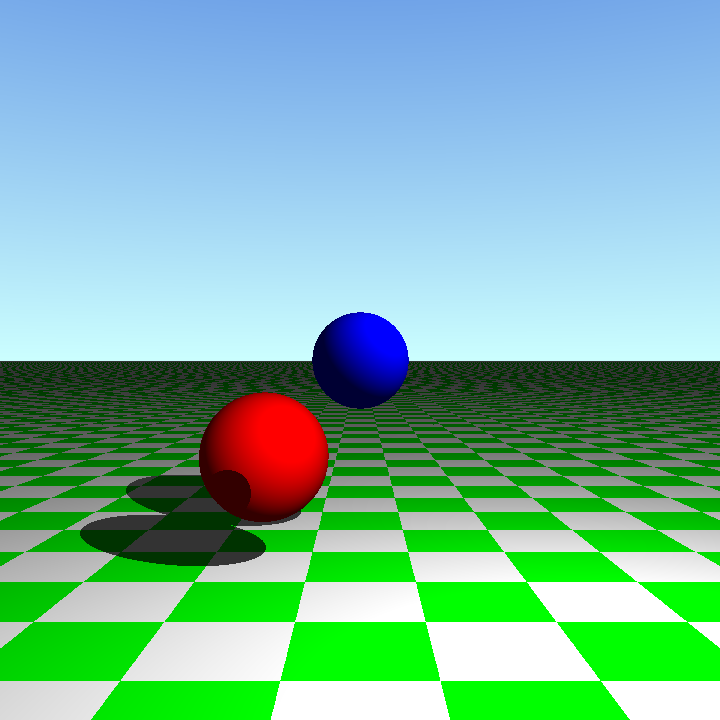

Putting these textures in our scene gets us a bit close to the obligatory 'reflective spheres on a chequerboard' all ray tracers must render:

Chequerboard and Sky

Third Party Code

Now I'm creating more images I wanted to make it easier to save them - before I was taking a screen grab of the UI and manually cropping it to just the image. nana has support for PNG files, however you need to include some third party code, namely libpng and zlib. (libpng uses zlib for compression)

There are pre-built static libraries available on the Nana website however I thought I would build them from scratch myself. Partly to give myself a bit more experience with building C++ stuff, partly to (hopefully!) make it easier to build on other platforms and partly to avoid the compiler warnings I got about missing .pdb files when I did use the static libraries...

I therefore downloading the source for them and put them into a ThirdParty folder under the source tree. I also decided to move the nana code into the same folder. And upgrade to Visual Studio 2017 whilst I was at it. I've tried to not change the downloaded source at all if possible to make it easier to upgrade to newer versions; this means I've created new project files for each library. Here are some notes on what I had to do to get everything building:

zlib

Downloaded from http://zlib.net/. I've created a custom project file at zlib.vcxproj based on contrib\vstudio\vc14\zlibstat.vcxproj with the following changes:

  • Removes Itanium and Release versions.
  • Renamed ReleaseWithoutAsm to just Release; the build is much simpler using the versions without hand-rolled assembly and I don't really need the extra little bit of speed.
  • Updated the runtime libraries to use non-DLL versions.
  • Removed ZLIB_WINAPI preprocessor definition to stop linker errors. (See http://stackoverflow.com/questions/5424549/unresolved-externals-despite-linking-in-zlib-lib
  • Renamed the output from zlibstat to just zlib.
  • Added an exception for compiler warning C4267 to keep my output window clean.
  • Use an MSBuild variable to define the ZLib source folder.
  • Removed unnecessary /MACHINE setting from the librarian additional options.

libpng

Downloaded from http://www.libpng.org/pub/png/libpng.html. I've created a custom project file at libpng.vcxproj based on projects\vstudio\libpng\libpng.vcxproj with the following changes:

  • Removed the Debug and Release dynamic library configurations.
  • Renamed the Debug Library and Release Library configurations to just Debug and Release.
  • Added x64 versions.
  • Removed the version number from the target name.
  • Removed reference to zlib.props - I define the path to the zlib source in the project file instead.
  • libpng auto-generates the header file pnglibconf.h from \scripts\pnglibconf.h.prebuilt. There is a project to do that at projects\vstudio\pnglibconf\pnglibconf.vcxproj - it just copies and renames the file with a custom build step. I've put that build step into my project file and make it run before compilation.

nana

Downloaded from http://nanapro.org/en-us/. I've created a custom project file at nana.vcxproj based on build\vc2015\nana.vcxproj with the following changes:

  • Tidied up the output paths and files.
  • Added STD_CODECVT_NOT_SUPPORTED to the preprocessor definitions. C++17 deprecates <codecvt>; adding this flag stops charset.cpp from using it.
  • Added NANA_ENABLE_PNG to enabled PNG support.
  • Added a custom build task to copy the necessary libpng header files across from the libpng source folder into the temporary nana_extrlib folder.
  • Added the nana_extrlib folder to the include folders.

The code so far can be found on GitHub. Next I'll look at adding a better lighting model so I can start rendering reflections.
